Anka Series 150W
COMM-48-A120ANK-L
COMM-54-A135ANK-L
COMM-72-A150ANK-L
COMM-54-A135ANK-L
COMM-72-A150ANK-L
Perfect Surface Finish
Toolless Access.
Our products are Trademark and Design Registered.
TECHNICAL SPECIFICATIONS
| MODEL | COMM-48-A120ANK-L | COMM-54-A135ANK-L | COMM-72-A150ANK-L |
| Power | 120W | 135W | 150W |
| Input Voltage | 100-277V AC 50/60Hz | ||
| Power Factor | 0,97 | 0,98 | 0,99 |
| Number of LED | 48 High Power | 54 High Power | 72 High Power |
| Lumen | 16238 | 18487 | 21577 |
| Color Temperature | 2000-3000-4000-5000K | ||
| Color Rendering Index (CRI) | 70 Ra / 80 Ra Optional | ||
| LED LM80 (L70) Life | >60.000 Hours | ||
| Operating Temperature | -30 / +55°C | ||
| Lighting Angle | Type II & Type III Asymmetric | ||
| IP Class | IP66 Outdoor | ||
| Body Material | Aluminum Injection | ||
| Front Section | 4mm Tempered Glass | ||
| Arm Diameter | 42 - 62 mm | ||
| Vertical Adjust | 0° - 5° - 10° - 15° - 90° | ||
| Weight | 5 kg | ||

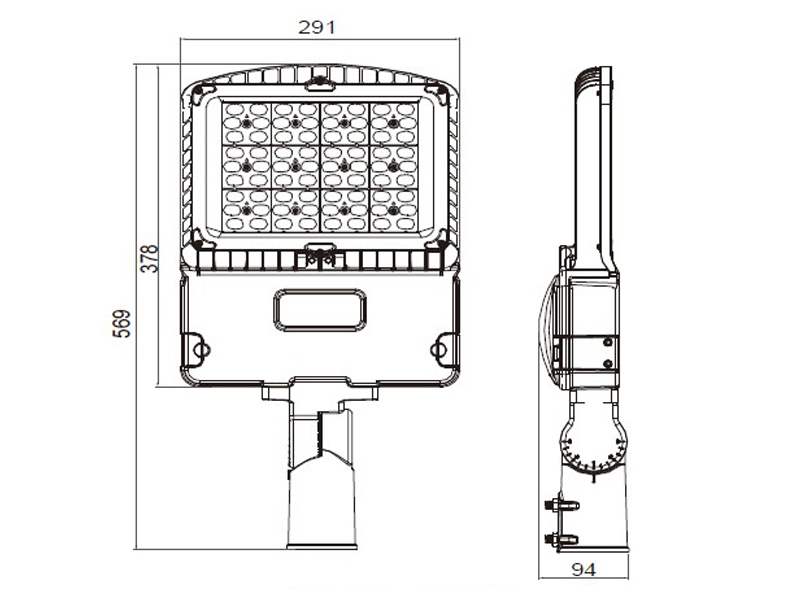

| Dimensions | 291 x 570 x 94 mm | ||
APPLICATIONS
| Street Lighting |
| Park-Garden Lighting |
| Highway Lighting |
| Walking Path Lighting |
| Wide Common Areas Lighting |
| Pier Lighting |
STANDART
| EN 60598-1 |
| EN 60598-2-3 |
| CE |
| LM 79 |
