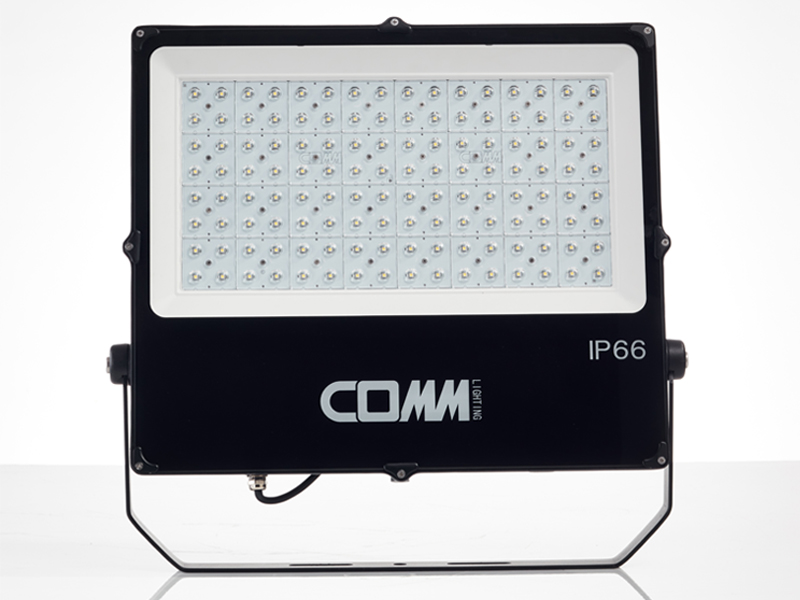

FLAT Series 300W
COMM-128-FLT250
COMM-128-FLT300
COMM-128-FLT300
Perfect Surface Quality and Elegant appearance.
Excellent heat dissipation design
Horizontal type, Angle adjustable easy installation.
Excellent Corrosion Resistance.
Our products are Trademark and Design Registered.
Get Information
TECHNICAL SPECIFICATIONS
MODEL | COMM-128-FLT250 | COMM-128-FLT300 |
Power | 250W | 300W |
Input Voltage | 100 - 277V AC 50/60Hz | |
Power Factor | 0,97 | 0,98 |
Lumen | 35709 | 41265 |
Number of LED | 128 High Power Led | |
Color Temperature | 3000-4000-5000-6500K | |
Led LM80 (L70) Life | >60.000 Hours | |
Operating Temperature | -30 / +55°C | |
Lighting Angle | 25-30-45-60-90° / Type II Type III Asymmetric | |
IP Class | IP66 Outdoor | |
Body Material | Aluminium Injection | |
Front Section | 4mm Tempered Glass | |
Bracket Screw Diameter | 8 (Min.) / 10 (Max.) mm | |
Bracket Screw Between Diameter | 100 (Min.) / 200 (Max.) mm | |
Weight | 8,5 kg | |
Dimensions | 52,4 x 54,5 x 6,5 cm |
APPLICATIONS
Building Lighting |
Factory Lighting |
Billboards Lighting |
Wide Common Areas Lighting |
Pier Lighting |
STANDART
EN 60598-1 |
EN 60598-2-5 |
