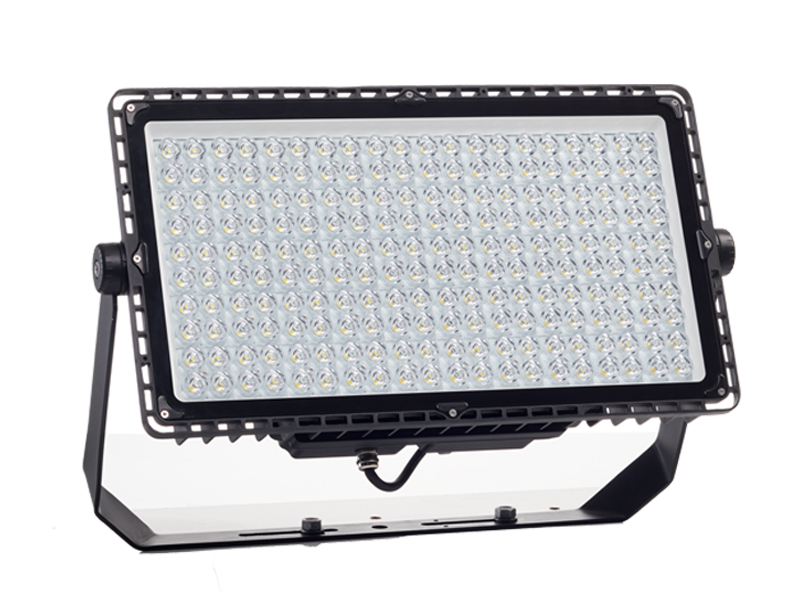

Stadium Series 600W
COMM-200-STD500
COMM-200-STD600
COMM-200-STD600
4K TV Broadcast Standard Compatible

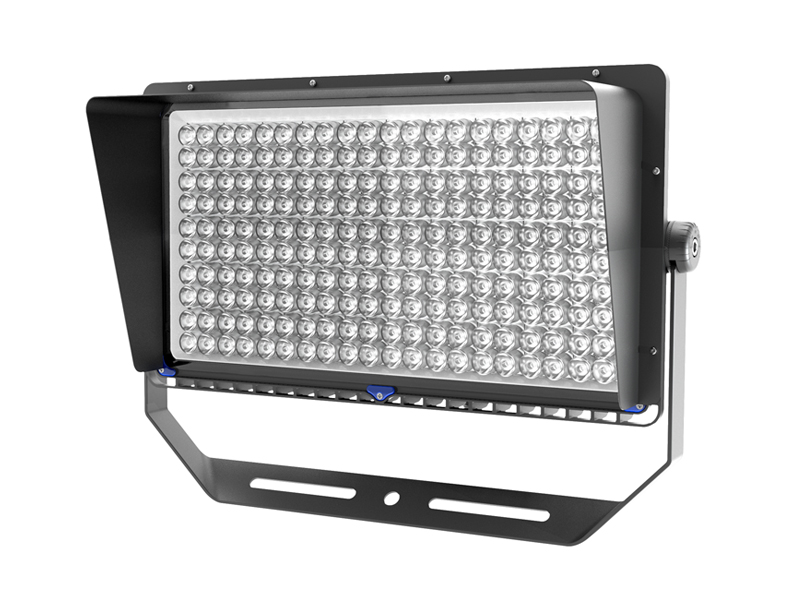

Optional Anti Glare Visor
Perfect Surface Finish
Flicker Free
CRI 80 / 90 / 95 & TLCI

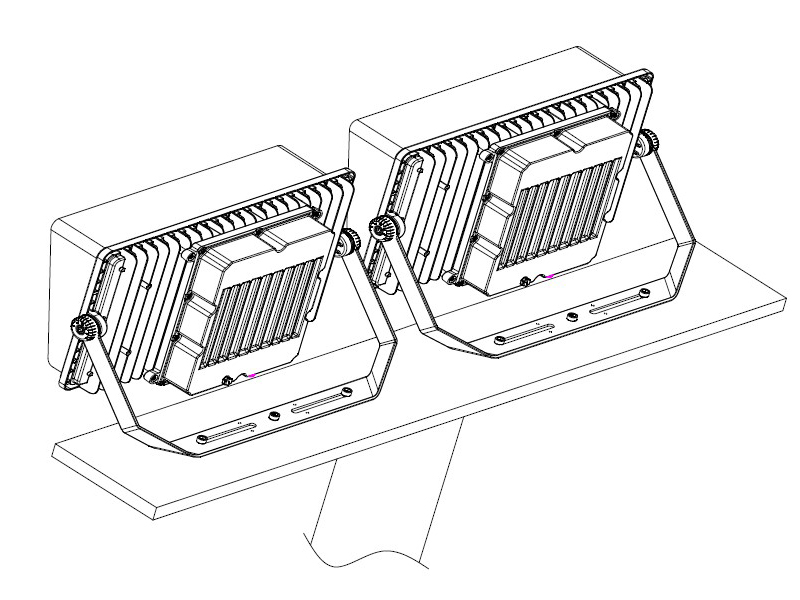

Our products can be produced as Group or Single Lens.
Our products are Trademark and Design Registered.
TECHNICAL SPECIFICATION
| MODEL | COMM-200-STD500 | COMM-200-STD600 |
| Power | 500W | 600W |
| Input Voltage | 100-277V AC 50/60Hz | |
| Power Factor | 0,98 | 0,99 |
| Lumen | *68124 | *78954 |
| Number of LED | 200 Qty / SMD 5050 or 3535 High Power | |
| Light Color | 3000-4000-5000-6500K | |
| Color Rendering Index (CRI) | 80 / 90 / 95 Optional | |
| Led LM80 (L70) Life | >60.000 Saat | |
| Working Temperature | -30 / +55°C | |
| Lens Angle | 7-10-15-30-45-60-80° | |
| IP Protect Class | IP66 Outdoor | |
| Body Material | Aluminum Injection | |
| Front Side | 4mm Tempered Glass | |
| Bracket Screw Diameter | 10 or 12 mm | |
| Bracket Screw Between Diameter | 20 cm | |
| Weight | 15,4 kg | |

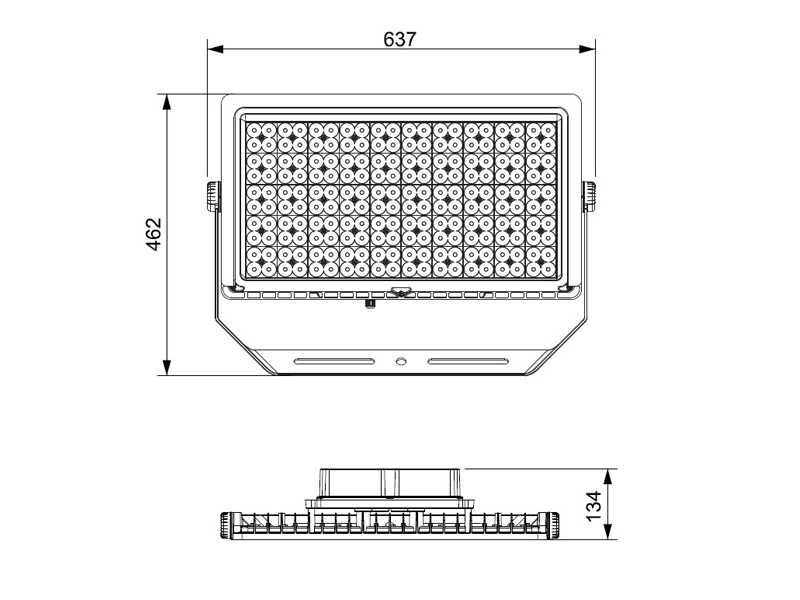

| Dimensions | 63,7 x 46,2 x 13,4 cm | |
| * Lumen values are given for CRI 70. | ||
APPLICATIONS

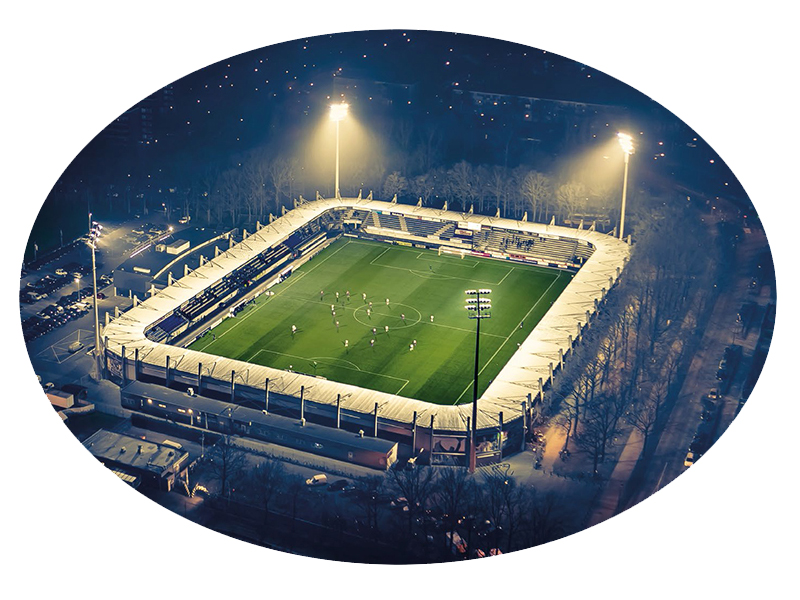

| Sports Fields Lighting in International Standards |
| Airports Apron Lighting |
| Wide Common Area Lighting |
| Military Field Lightings |
| Long Distance Illuminations |
| Sea Port Lighting |
| Tower Lighting |
| Factory Lighting |
| Building Facade Lightings |
STANDARD
| EN 60598 -1 |
| EN 60598-2-5 |
